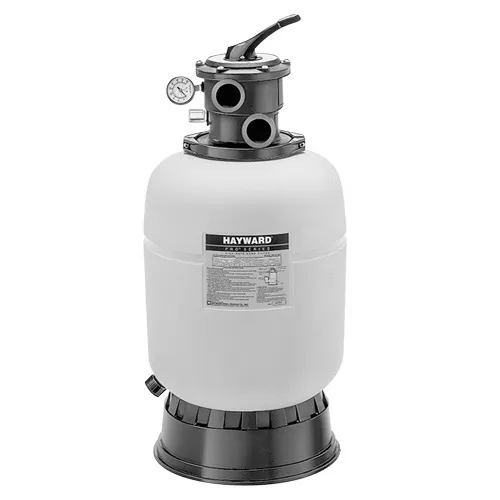

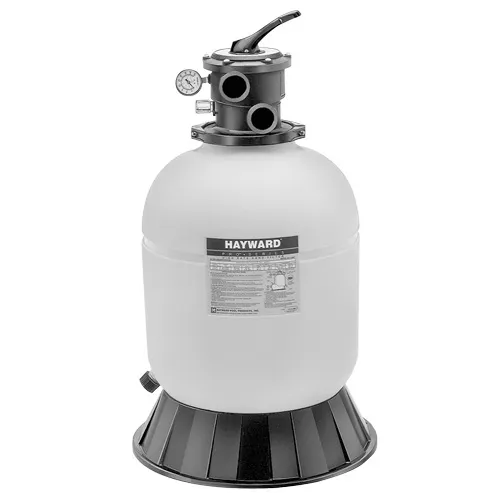

ProSeries Sand Filter 30 in Pool Filter

OVERVIEW

FEATURES

Pro-Series™ filters are performance matched with our above-ground pump series to ensure a system that maximizes its filtration ability. They utilize a precision engineered umbrella-fold self-cleaning lateral system to provide efficient flow and evenly distributed water for long lasting performance. A broad selection of filter sizes, pumps, and accessories allows you to choose the system that best suits your above-ground pool needs.

7-position VariFlo® valve provides maximum flow at lower pressure drop
Large pressure sand/water drain for rapid winterizing or servicing
Integral top diffuser ensures even distribution of water over the entire sand bed for maximum use of the filtration area
Pump-to-filter union connection provides simple installation and winterization.

SPECIFICATIONS

Application	Spa, New Construction, Renovation, Pool, Water Features, Aftermarket
Backwash Flow Rate	98
98	Hayward
Cartridge	No
Channel	Expert Line
Design Flow Rate	98
Drain Port Size	1.5
Filter Type	Sand
Footprint	30-1/2 x 30-1/2″
GTIN	610377547765

Labor Warranty	1-year
Master Carton Qty	1
Maximum Working Pressure	50 PSI
Pallet Qty	1
Parts Warranty	3-year
Pool Type	In Ground
Pressure Gauge	Yes
Product Dimensions	48 ” x 30.5 ” x 30.5 “
Product Height	48 in
Product Length	30.5 in

Product Weight	68 lb
Product Width	30.5 in
Public Design Flow Rate	98
Residential Design Flow Rate	98
Sand Capacity	500 lbs
Series Filters	ProSeries
Shipping Dimensions	48.3 ” x 32 ” x 32 “
Shipping Height	48.3 in
Shipping Length	32 in
Shipping Weight	109.6 lb

Shipping Width	32 in
Side Clearance – Filters	18 in
Tank Type	Polymeric Resin
Turnover 10 Hours	58800
Turnover 8 Hours	47040
Valve Included	2″ Variflow
Vertical Clearance Filters	18 in
